Rolling Contact Servo Controlled Automatic Voltage Conroller

Get a Price/Quote

Product Details:

Current Type AC to DC
Display Meter
Control System Manual
Input Voltage 220 Volt (V)
Design Modern
Phase Three Phase
Warranty 1 Year
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Rolling Contact Servo Controlled Automatic Voltage Conroller Price And Quantity

Minimum Order Quantity 1 Unit

Rolling Contact Servo Controlled Automatic Voltage Conroller Product Specifications

Input Voltage 220 Volt (V)
Control System Manual
Display Meter
Warranty 1 Year
Design Modern
Current Type AC to DC
Phase Three Phase

Rolling Contact Servo Controlled Automatic Voltage Conroller Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 50 Unit Per Month
Delivery Time 7 - 10 Days
Main Domestic Market All India

Product Description

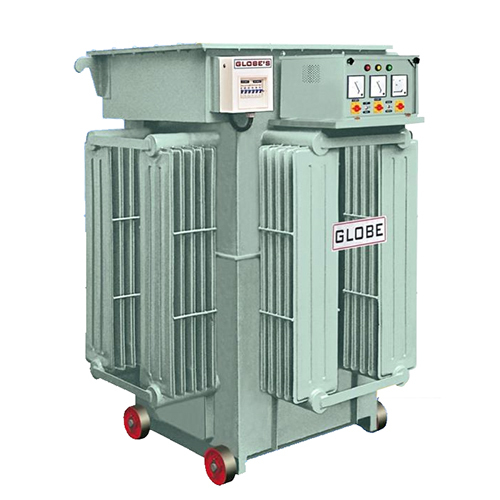

A Rolling Contact Servo Controlled Automatic Voltage Controller (AVC) is an advanced device that maintains a consistent output voltage by adjusting the input voltage using a servo motor mechanism. Key components include a rolling contact regulator, high-quality copper windings for optimal conductivity, and precision resistors for voltage control. Widely used in industries such as textiles, manufacturing, and power plants, it ensures efficient operation of sensitive machinery. The AVC is designed using cutting-edge technologies like automated assembly and robust fabrication methods. Available in both floor-standing and compact forms, it provides enhanced protection, stability, and improved operational efficiency, minimizing downtime.

Advantages

REDUCTION IN BREAKDOWN OF ELECTRICAL EQUIPMENTS
POWER SAVING (REDUCTION IN POWER BILLS)
IMPROVEMENT IN POWER FACTOR (Only in case of High Voltage)
80% DEPRECIATION AS PER INCOME TAX ACT.
UNIFORM QUALITY OF END PRODUCT
BETTER EFFICIENCY IN PLANT
REDUCTION IN MDI

Input Voltage Variation	%Reduction in Breakdown Possible		Approx. Power Saving Possible
	Motor Load	Lighting Load	Motor Load	Lighting Load
380-400 volts	Nil	Nil	Nil	Nil & No Servo Stabilizer Required
380-420 volts	5%	10%	3%	5%
380-440 volts	10%	20%	5%	10%
380-460 volts	40%	40%	7%	20%
380-480 volts	60%	60%	10%	30%

Input Voltage	360-450 V	350-450 V	340-460 V	340-480 V	320-460 V	300-460 V
Efficiency (Approx.)	95.5%	99.3%	99%	98.9%	98.7%	98.5%
Output Voltage	400 V -/+ 1%, 3 Phase, 50 Hz
Cooling	Naturally Oil Cooled
Type	Indoor
Temperature Rise (Max.)	30 deg C above ambient
Mounting	On Uni-directional Wheels
Wave form distortion	Virtually Nil
Duty Cycle	100% Continuous
